Struts2绑定Jquery EasyUI实例

Struts2绑定Jquery EasyUI实例.介绍：

jQuery EasyUI是一组基于jQuery的UI插件集合，而jQuery EasyUI的目标就是帮助web开发者更轻松的打造出功能丰富并且美观的UI界面。对于一些不喜欢做页面的程序猿来说这是个很好的绑定数据的插件。jQuery EasyUI为我们提供了大多数UI控件的使用，如：accordion，combobox，menu，dialog，tabs，tree，validatebox，window等等。 jQuery EasyUI绑定数据类型是JSON类型。

1、导入相应的jar包（非常重要，不要导入错了，我开始就是导入错了害得我整了一天）。

struts2 jar包

如果要是使用struts2-core-2.16.jar的话需要依赖的包有 json-lib2.1.jar、json-plugin-0.33.jar、ezmorph-1.0.3.jar、commons-beanutils-1.7.0.jar或1.8 这几个包的版本号必须是这样的，否则出错( org.apache.catalina.core.StandardWrapperValve invoke

严重: Servlet.service() for servlet [default] in context with path [/TransactionSystem] threw exception [Filter execution threw an exception] with root cause)

另外导入需要.commons-httpclient.jar 以及SSH相关jar包。

2、struts.xml文件配置：使用jsonplugin将属性转换成json对象，extends=”json-default”result type要为json
root 是只返回该内容，resultObj与action中的属性名字一样，即要返回给页面的值

[html] view plain copy print ?

<constant name=”struts.i18n.encoding” value=”GBK” />
<package name=”admin” namespace=”/admin” extends=”json-default” >
<action name=”index”>
<result>index.jsp</result>
</action>
<action name=”*-*” class=”TransactionSystem.action.{1}Action” method=”{2}”>
<result type=”json” >
<param name=”root”>resultObj</param>
</result>
</action>
</package>

 <constant name="struts.i18n.encoding" value="GBK" />
    <package name="admin" namespace="/admin" extends="json-default" >
          <action name="index">
             <result>index.jsp</result>
          </action>
       <action name="*-*" method="{2}">
       		<result type="json" >
       		<param name="root">resultObj</param>
       		</result>
       </action>
    </package>

3、*.jsp代码

[html] view plain copy print ?

<html>
<head>
<base href=”<%=basePath%>”>
<title>交易码列表</title>
<meta http-equiv=”pragma” content=”no-cache”>
<meta http-equiv=”cache-control” content=”no-cache”>
<meta http-equiv=”expires” content=”0″>
<meta http-equiv=”keywords” content=”keyword1,keyword2,keyword3″>
<meta http-equiv=”description” content=”This is my page”>
<!–
<link rel=”stylesheet” type=”text/css” href=”styles.css”>
–>
<script type=”text/javascript” src=”easyUI/jquery-1.6.min.js”></script>
<script type=”text/javascript” src=”easyUI/jquery.easyui.min.js”></script>
<link rel=”stylesheet” href=”easyUI/themes/default/easyui.css” type=”text/css”></link>
<link rel=”stylesheet” href=”easyUI/themes/icon.css” type=”text/css”></link>
<script>
$(‘#tt’).datagrid({
url: ‘admin/TransCode-list’,
title: ‘DataGrid – ContextMenu’,
width: 700,
height: ‘auto’,
fitColumns: true,
columns:[[
{field:'id',title:'ID',width:80},
{field:'tranNo',title:'交易码',width:120},
{field:'tranName',title:'交易名称',width:80,align:'right'},
{field:'cr_Num',title:'CR号',width:80,align:'right'}
]],
onHeaderContextMenu: function(e, field){
e.preventDefault();
if (!$(‘#tmenu’).length){
createColumnMenu();
}
$(‘#tmenu’).menu(‘show’, {
left:e.pageX,
top:e.pageY
});
}
});
});
</script>
</head>
<body >
<table id=”tt”></table>
</body>
</html>

<html>
  <head>
    <base href="<%=basePath%>">

    <title>交易码列表</title>

	<meta http-equiv="pragma" content="no-cache">
	<meta http-equiv="cache-control" content="no-cache">
	<meta http-equiv="expires" content="0">
	<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
	<meta http-equiv="description" content="This is my page">
	<!--
	<link rel="stylesheet" type="text/css" href="styles.css">
	-->
<script type="text/javascript" src="easyUI/jquery-1.6.min.js"></script>
<script type="text/javascript" src="easyUI/jquery.easyui.min.js"></script>
<link rel="stylesheet" href="easyUI/themes/default/easyui.css" type="text/css"></link>
  <link rel="stylesheet" href="easyUI/themes/icon.css" type="text/css"></link>
	<script>
		$('#tt').datagrid({
				url: 'admin/TransCode-list',
				title: 'DataGrid - ContextMenu',
				width: 700,
				height: 'auto',
				fitColumns: true,
				columns:[[
					{field:'id',title:'ID',width:80},
					{field:'tranNo',title:'交易码',width:120},
					{field:'tranName',title:'交易名称',width:80,align:'right'},
					{field:'cr_Num',title:'CR号',width:80,align:'right'}
				]],
				onHeaderContextMenu: function(e, field){
					e.preventDefault();
					if (!$('#tmenu').length){
						createColumnMenu();
					}
					$('#tmenu').menu('show', {
						left:e.pageX,
						top:e.pageY
					});
				}
			});
		});
	</script>
  </head>
  <body >
	<table id="tt"></table>
  </body>
</html>

4、java代码

[java] view plain copy print ?

public class TransCodeAction extends ActionSupport {
private List<TransCode> transCodes;
private TransCodeManager transCodeManager;
private int id;
private JSONObject resultObj;// 要返回到页面的JSON数据，一定要有getter,setter方法。
public JSONObject getResultObj() {
return resultObj;
}
public void setResultObj(JSONObject resultObj) {
this.resultObj = resultObj;
}
public String list() {
HttpServletResponse resp = ServletActionContext.getResponse();
resp.setContentType(“application/json”);
transCodes = transCodeManager.getAll(); // 通过*DAO中Hibernate读取数据
ArrayList al = new ArrayList();
for (TransCode tc : transCodes) {
Map<String, Object> m = new HashMap<String, Object>();
m.put(“id”, tc.getId());
m.put(“tranName”, tc.getTranName());
m.put(“tranNo”, tc.getTranNo());
m.put(“cr_Num”, tc.getCr_Num());
al.add(m);
}
Map<String, Object> json = new HashMap<String, Object>();
json.put(“total”, transCodes.size());// total键存放总记录数，必须的json.put(“rows”, transCodes.size());transCodes.size()返回的数据条数
json.put(“rows”, al);// rows键存放每页记录 list，必须是“rows”关键词
resultObj = JSONObject.fromObject(json);// 格式化result一定要是JSONObject
return SUCCESS;
}
public List<TransCode> getTransCodes() {
return transCodes;
}
public void setTransCodes(List<TransCode> transCodes) {
this.transCodes = transCodes;
}
public TransCodeManager getTransCodeManager() {
return transCodeManager;
}
@Resource
public void setTransCodeManager(TransCodeManager transCodeManager) {
this.transCodeManager = transCodeManager;
}
}

public class TransCodeAction extends ActionSupport {
		private List<TransCode> transCodes;
		private TransCodeManager transCodeManager;
		private int id;
		private JSONObject resultObj;// 要返回到页面的JSON数据，一定要有getter,setter方法。

		public JSONObject getResultObj() {
			return resultObj;
		}

		public void setResultObj(JSONObject resultObj) {
			this.resultObj = resultObj;
		}

		public String list() {
			HttpServletResponse resp = ServletActionContext.getResponse();
			resp.setContentType("application/json");
			transCodes = transCodeManager.getAll(); // 通过*DAO中Hibernate读取数据
			ArrayList al = new ArrayList();
			for (TransCode tc : transCodes) {
				Map<String, Object> m = new HashMap<String, Object>();
				m.put("id", tc.getId());
				m.put("tranName", tc.getTranName());
				m.put("tranNo", tc.getTranNo());
				m.put("cr_Num", tc.getCr_Num());
				al.add(m);
			}
			Map<String, Object> json = new HashMap<String, Object>();
			json.put("total", transCodes.size());// total键 存放总记录数，必须的json.put("rows", transCodes.size());transCodes.size()返回的数据条数
			json.put("rows", al);// rows键 存放每页记录 list，必须是“rows”关键词
			resultObj = JSONObject.fromObject(json);// 格式化result一定要是JSONObject

			return SUCCESS;
		}

		public List<TransCode> getTransCodes() {
			return transCodes;
		}
		public void setTransCodes(List<TransCode> transCodes) {
			this.transCodes = transCodes;
		}
		public TransCodeManager getTransCodeManager() {
			return transCodeManager;
		}
		@Resource
		public void setTransCodeManager(TransCodeManager transCodeManager) {
			this.transCodeManager = transCodeManager;
		}
	}

// 这里边的json数据格式为：{total=4, rows=[{id=3, tranNo=401563,tranName=现金圈存, cr_Num=1117}, {id=4, tranNo=401563, tranName=现金圈存, cr_Num=1117}]}

//resultObj数据格式为：{“total”:2,”rows”:[{"id":2,"tranNo":401563,"tranName":"现金圈存","cr_Num":1117},{"id":3,"tranNo":401563,"tranName":"现金圈存","cr_Num":1117}]} // 返回到页面绑定到Jquery EasyUI中datagrid的数据一定要是上面的resultObj数据格式

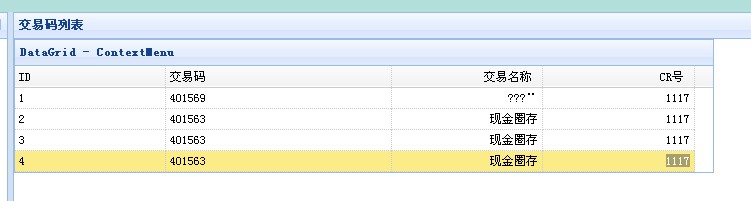

5、效果图

http://blog.csdn.net/zxfc88/article/details/8703157

本文链接地址: Struts2绑定Jquery EasyUI实例http://www.hongyanliren.com/2014m11/19557.html
