一：1.最终的实现效果图：

2.案例的目录结构：





3.案例中使用到的jar包：

二：案例的链接数据库的层次结构关系：数据库是：mysql ，数据库名字：dsm,表格名字：customers

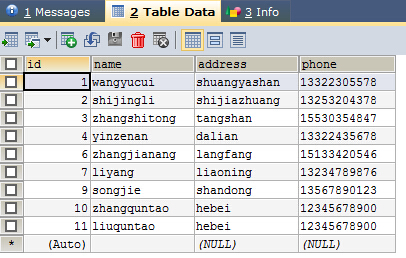

数据库表格的样子是：

数据库实现中用到的各个类的层次关系：

上述java类中的源代码：

Dao.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
package com.guodiantong.mvc.dao;
import java.lang.reflect.ParameterizedType;
import java.lang.reflect.Type;
import java.sql.Connection;
import java.util.List;
import org.apache.commons.dbutils.QueryRunner;
import org.apache.commons.dbutils.handlers.BeanHandler;
import org.apache.commons.dbutils.handlers.BeanListHandler;
import org.apache.commons.dbutils.handlers.ScalarHandler;
import com.guodiantong.mvc.db.JdbcUtils;
public class Dao<T> {

    private QueryRunner queryRunner=new QueryRunner();
    private Class<T> clazz;

    public Dao(){
        Type superClass=getClass().getGenericSuperclass();
        if(superClass instanceof ParameterizedType){
            ParameterizedType parameterizedType= (ParameterizedType) superClass;

            Type[] typeArgs=parameterizedType.getActualTypeArguments();
            if(typeArgs!=null&&typeArgs.length>0){
               if(typeArgs[0] instanceof Class){
                   clazz=(Class<T>) typeArgs[0];
               }
            }
        }
    }
    /*
     * 这个方法是只获取，表格中的某一行属性中的某一个属性值，就是返回某一个字段的值，例如返回某一条记录的customerName，或者返回数据表中有多少条记录等。
     */
    public <E> E getForValue(String sql,Object ... args){
        Connection connection=null;
        try {connection=JdbcUtils.getConnection();
            return (E) queryRunner.query(connection, sql, new ScalarHandler(), args);
        } catch (Exception e) {
            e.printStackTrace();
        }finally{
            JdbcUtils.releaseConnection(connection);
        }
        return null;
    }

    /*
     * 该方法是返回一组数据对象实体类，返回T所对应的List，其实质就是查询
     */
    public List<T> getForList(String sql,Object ... agrs ){
        Connection connection=null;
        try {connection=JdbcUtils.getConnection();
            return queryRunner.query(connection, sql, new BeanListHandler<T>(clazz), agrs);
        } catch (Exception e) {
           e.printStackTrace();
        }finally{
            JdbcUtils.releaseConnection(connection);
        }
        return null;
    }
    /*
     * 执行查询的语句，结果是返回数据表中的一个对象（一条记录）其实质就是查询！
     */
      public T get(String sql,Object ... agrs){

          Connection connection=null;
          try {connection=JdbcUtils.getConnection();
            return queryRunner.query(connection, sql, new BeanHandler<T>(clazz), agrs);
        } catch (Exception e) {
               e.printStackTrace();
        }finally{
            JdbcUtils.releaseConnection(connection);
        }
         return null;
      }
    /*
     * 该方法封装了INSERT、UPDATE、DELETE操作
     * sql是sql语句
     * args是占位符
     */
    public void update(String sql,Object ... args){
        Connection connection=null;
        try {connection=JdbcUtils.getConnection();
        queryRunner.update(connection, sql, args);

        } catch (Exception e) {
           e.printStackTrace();
        }finally{
            JdbcUtils.releaseConnection(connection);
        }
    }
}


JdbcUtils.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
package com.guodiantong.mvc.db;
import java.sql.Connection;
import java.sql.SQLException;
import javax.sql.DataSource;
import com.mchange.v2.c3p0.ComboPooledDataSource;
public class JdbcUtils {
/*
 *释放数据库的连接
 *
 */
    public static void releaseConnection(Connection connection){

        try {
            if(connection !=null){
                connection.close();
            }
        } catch (Exception e) {
          e.printStackTrace();
        }
    }

    private static DataSource dataSource=null;
    static {
        /*
         * 数据源只能被创建一次
         */
        dataSource=new ComboPooledDataSource("mvcapp");
    }

    public static Connection getConnection() throws SQLException{
        //dataSource=new ComboPooledDataSource("mvcapp");若要是放在这里就说明，获得一次就创建一下，比较耗费内存
        return dataSource.getConnection();
    }
}

说明一下这里的　“mvcapp”参数，这个参数是在c3p0-config.xml文件中的一项配置（<named-config name=”mvcapp”>）



Customer.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
package com.guodiantong.mvc.domain;
public class Customer {
  private Integer id;
  private String name;
  private String address;
  private String phone;
public Integer getId() {
    return id;
}
public void setId(Integer id) {
    this.id = id;
}
public String getName() {
    return name;
}
public void setName(String name) {
    this.name = name;
}
public String getAddress() {
    return address;
}
public void setAddress(String address) {
    this.address = address;
}
public String getPhone() {
    return phone;
}
public void setPhone(String phone) {
    this.phone = phone;
}
public Customer(Integer id, String name, String address, String phone) {
    super();
    this.id = id;
    this.name = name;
    this.address = address;
    this.phone = phone;
}
public Customer() {
    super();
}
@Override
public String toString() {
    return "Customer [id=" + id + ", name=" + name + ", address=" + address
            + ", phone=" + phone + "]";
}

}

CustomerDao.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
package com.guodiantong.mvc.dao;
import java.util.List;
import com.guodiantong.mvc.domain.CriteriaCustomer;
import com.guodiantong.mvc.domain.Customer;
public interface CustomerDao {

    public List<Customer> getForListWithCriteriaCustomer(CriteriaCustomer cc);
    public List<Customer> getAll();

    public void save(Customer customer);

    public Customer get(Integer id);

    public void delete(Integer id);

    /*
     * 根据查询的名字，返回使用该名字的数据条数
     */
    public long getCountWithName(String name);

    public void update(Customer customer);
}

CustomerDaoJdbcImpl.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
package com.guodiantong.mvc.impl;
import java.util.List;
import com.guodiantong.mvc.dao.CustomerDao;
import com.guodiantong.mvc.dao.Dao;
import com.guodiantong.mvc.domain.CriteriaCustomer;
import com.guodiantong.mvc.domain.Customer;
public class CustomerDaoJdbcImpl extends Dao<Customer>implements CustomerDao {

    public List<Customer> getForListWithCriteriaCustomer(CriteriaCustomer cc){
        String sql="SELECT id ,name,address,phone FROM customers WHERE "+
    "name LIKE ? AND address LIKE ? AND phone LIKE ?";

        return getForList(sql, cc.getName(),cc.getAddress(),cc.getPhone());
    }
    @Override
    public List<Customer> getAll() {
        String sql="SELECT id,name,address,phone FROM customers";

        return getForList(sql);
    }
    @Override
    public void save(Customer customer) {
        String sql="INSERT INTO customers(name,address,phone) VALUES(?,?,?)";
        update(sql, customer.getName(),customer.getAddress(),customer.getPhone());;
    }
    @Override
    public Customer get(Integer id) {
        String sql="SELECT id,name,address,phone FROM customers WHERE id=?";
        return get(sql, id);
    }
    @Override
    public void delete(Integer id) {
      String sql="DELETE FROM customers WHERE id=?";
      update(sql, id);
    }
    @Override
    public long getCountWithName(String name) {
        String sql="SELECT count(id) FROM customers WHERE name=?";
        return getForValue(sql, name);
    }
    @Override
    public void update(Customer customer) {
        String sql="UPDATE customers SET name=?, address=?, phone=? WHERE id=?";
        update(sql, customer.getName(),customer.getAddress(),customer.getPhone(),customer.getId());

    }


}

说明：Dao.java 和JdbcUtils.java具有可移植性，在哪个工程项目中都能用，CustomerDao.java和CustomerDaoImpl.java 是根据具体的项目抽象出可能用到的方法，然后让底层Dao.java最基础的增删改查等功能来拼凑出项目中页面中抽象的方法



三：项目中jsp文件的编写（jsp实质上就是一个servlet）

案例中用到最多的无非是HttpServletRequest  request,HttpServletResponse response这两个参数结合页面中的表单form以及转发方式等在页面和后台servlet之间传递数据

开始页面的jsp：index.jsp:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
    <%@ page import="java.util.List" %>
  <%@ page import="com.guodiantong.mvc.domain.Customer" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
<script type="text/javascript" src="script/jquery-1.7.2.js"></script>
<script type="text/javascript">
  $(function(){
    $(".delete").click(function(){
        var content=$(this).parent().parent().find("td:eq(1)").text();
        var flag =confirm("确定要删除" + content + "的信息吗？");
        return flag;
    });
  });
</script>
</head>
<body>
<form  action="query.do" method="post">
<table>
<tr>
    <td>CustomerName:</td>
    <td><input type="text" name=name></td>
 </tr>
 <tr>
    <td>Address:</td>
    <td><input type="text" name="address"></td>
  </tr>
  <tr>
     <td>Phone:</td>
     <td><input type="text" name="phone"></td>
  </tr>
   <tr>
     <td><input  type="submit" value="Query"></td>
     <td><a href="addCustomer.jsp">Add Customer123</a></td>
   </tr>
</table>
</form>
<hr>
<br>
<%
   List<Customer> customer=(List<Customer>)request.getAttribute("customers");
   if(customer!=null && customer.size()>0){
    %>
      <table border="1" cellspacing="0" cellpadding="10">
  <tr>
  <th>id</th>
  <th>name</th>
  <th>address</th>
  <th>phone</th>
  <th>delete</th>
  <th>edit</th>
  </tr>

  <%
     for(Customer cust:customer)
     {
  %>
      <tr>
        <td><%=cust.getId() %></td>
        <td><%=cust.getName() %></td>
        <td><%=cust.getAddress() %></td>
        <td><%=cust.getPhone() %></td>
        <td><a class="delete" href="delete.do?id=<%=cust.getId()%>">delete</a></td>
        <td><a class="edit"   href="edit.do?id=<%=cust.getId() %>">edit</a></td>
      </tr>

  <%
     }
  %>

<%
   }
%>


  </table>
</body>
</html>

新增页面的jsp：addCustomer.jsp:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>

    <% Object msg=request.getAttribute("message");
    if(msg!=null){
    %>
    <%=request.getAttribute("message")%>
    <%
    }

    %>
<form action="addCustomer.do" method="post">
 <table>
 <tr>
     <td>customerName:<input type="text" name="name"
      value="<%=request.getAttribute("name")==null? "":request.getAttribute("name") %>"></td>
 </tr>
 <tr>
     <td>address:<input type="text" name="address"
      value="<%=request.getAttribute("address")==null? "":request.getAttribute("address") %>"></td>
 </tr>
 <tr>
     <td>phone:<input type="text" name="phone"
     value="<%=request.getAttribute("phone")==null? "":request.getAttribute("phone") %>"></td>
 </tr>
 <tr>
     <td><input  type="submit" value="submit"></td>

 </tr>
 </table>
</form>
</body>
</html>

编辑页面的jsp：edit.jsp:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
 <%@ page import="com.guodiantong.mvc.domain.Customer" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Insert title here</title>
</head>
<body>
    <%
        Object msg = request.getAttribute("message");
        if(msg != null){
    %>
            <br>
            <font color="red"><%= msg %></font>
            <br>
            <br>
    <%
        }

        String id = null;
        String oldName = null;
        String name = null;
        String address = null;
        String phone = null;

        Customer customer = (Customer)request.getAttribute("customer");
        if(customer != null){
            id = customer.getId() + "";
            oldName = customer.getName();
            name = customer.getName();
            address = customer.getAddress();
            phone = customer.getPhone();
        }else{
            id = request.getParameter("id");
            oldName = request.getParameter("oldName");
            name = request.getParameter("oldName");

            address = request.getParameter("address");
            phone = request.getParameter("phone");
        }
    %>

    <form action="update.do" method="post">

        <input type="hidden" name="id" value="<%= id %>"/>
        <input type="hidden" name="oldName" value="<%= oldName %>"/>

        <table>
            <tr>
                <td>CustomerName:</td>
                <td><input type="text" name="name"
                    value="<%= name %>"/></td>
            </tr>
            <tr>
                <td>Address:</td>
                <td><input type="text" name="address"
                    value="<%= address %>"/></td>
            </tr>
            <tr>
                <td>Phone:</td>
                <td><input type="text" name="phone"
                    value="<%= phone %>"/></td>
            </tr>
            <tr>
                <td colspan="2"><input type="submit" value="Submit"/></td>
            </tr>
        </table>
    </form>
</body>
</html>

四.后台中的控制类Servlet   CustomerServlet.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
package com.guodiantong.mvc.servlet;
import java.io.IOException;
import java.lang.reflect.Method;
import java.util.List;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.guodiantong.mvc.dao.CustomerDao;
import com.guodiantong.mvc.domain.CriteriaCustomer;
import com.guodiantong.mvc.domain.Customer;
import com.guodiantong.mvc.impl.CustomerDaoJdbcImpl;
public class CustomerServlet extends HttpServlet {
    CustomerDao customerDao=new CustomerDaoJdbcImpl();
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
       doPost(req, resp);
    }
    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
     String servletPath=req.getServletPath();
     System.out.println(servletPath);
     String methodName=servletPath.substring(1);
            methodName=methodName.substring(0, methodName.length()-3);
            /*
             * 利用反射获取methodName对应的方法
             */
     try {
          Method method=getClass().getDeclaredMethod(methodName, HttpServletRequest.class,
                  HttpServletResponse.class);
         //利用反射调用对应的方法
          method.invoke(this, req,resp);
    } catch (Exception e) {
        e.printStackTrace();
        resp.sendRedirect("error.jsp");
    }

    }

    private void query(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException{
        String name=request.getParameter("name");
        String address=request.getParameter("address");
        String phone=request.getParameter("phone");

        CriteriaCustomer criteriaCustomer=new CriteriaCustomer(name, address, phone);

        List<Customer> customers=customerDao.getForListWithCriteriaCustomer(criteriaCustomer);
        System.out.println(customers);
        request.setAttribute("customers", customers);
        request.getRequestDispatcher("/index.jsp").forward(request, response);
    }
    private void delete(HttpServletRequest request,HttpServletResponse response) throws IOException{
        String idstr=request.getParameter("id");
        int id=0;

        try {
            id=Integer.parseInt(idstr);
            System.out.println(id);
            customerDao.delete(id);
        } catch (Exception e) {

        }
        response.sendRedirect("query.do");
    }

    private void addCustomer(HttpServletRequest resquest,HttpServletResponse response) throws IOException, ServletException{
        String name=resquest.getParameter("name");
        String address=resquest.getParameter("address");
        String phone=resquest.getParameter("phone");
        //String message="用户" + name + "已经注册过了";
        long count=customerDao.getCountWithName(name);
        if(count>0){
            //resquest.setAttribute("count", count);
            resquest.setAttribute("message","用户" + name + "已经注册过了");
            resquest.setAttribute("address", address);
            resquest.setAttribute("phone", phone);
            resquest.getRequestDispatcher("/addCustomer.jsp").forward(resquest, response);
        }
        else{
        Customer customer=new Customer(null, name, address, phone);


        customerDao.save(customer);
        response.sendRedirect("query.do");}
    }
    private void edit(HttpServletRequest request,HttpServletResponse response){
        String idstr=request.getParameter("id");
        int id=0;

        try {
            id=Integer.parseInt(idstr);
            Customer cus=customerDao.get(id);
//          String name=cus.getName();
//          String address=cus.getAddress();
//          String phone=cus.getPhone();
//          request.setAttribute("name", name);
//          request.setAttribute("address", address);
            request.setAttribute("customer", cus);
            request.getRequestDispatcher("/edit.jsp").forward(request, response);
        } catch (Exception e) {
            // TODO: handle exception
        }
    }

    private void update(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException{

        //1. 获取表单参数: id, name, address, phone, oldName
        String id = request.getParameter("id");
        String name = request.getParameter("name");
        String phone = request.getParameter("phone");
        String address = request.getParameter("address");
        String oldName = request.getParameter("oldName");

        //2. 检验 name 是否已经被占用:

        //2.1 比较 name 和 oldName 是否相同, 若相同说明 name 可用.
        //2.1 若不相同, 则调用 CustomerDAO 的 getCountWithName(String name) 获取 name 在数据库中是否存在
        if(!oldName.equalsIgnoreCase(name)){
            long count = customerDao.getCountWithName(name);
            //2.2 若返回值大于 0, 则响应 updatecustomer.jsp 页面: 通过转发的方式来响应 newcustomer.jsp
            if(count > 0){
                //2.2.1 在 updatecustomer.jsp 页面显示一个错误消息: 用户名 name 已经被占用, 请重新选择!
                //在 request 中放入一个属性 message: 用户名 name 已经被占用, 请重新选择!,
                //在页面上通过 request.getAttribute("message") 的方式来显示
                request.setAttribute("message", "用户名" + name + "已经被占用, 请重新选择!");

                //2.2.2 newcustomer.jsp 的表单值可以回显.
                //address, phone 显示提交表单的新的值, 而 name 显示 oldName, 而不是新提交的 name

                //2.2.3 结束方法: return
                request.getRequestDispatcher("/updatecustomer.jsp").forward(request, response);
                return;
            }
        }

        //3. 若验证通过, 则把表单参数封装为一个 Customer 对象 customer
        Customer customer = new Customer(null, name, address, phone);
        customer.setId(Integer.parseInt(id));

        //4. 调用 CustomerDAO 的  update(Customer customer) 执行更新操作
        customerDao.update(customer);

        //5. 重定向到 query.do
        response.sendRedirect("query.do");
    }
}
分类: java web
