java jmf山寨QQ视频聊天实例源码介绍



java jmf山寨QQ视频聊天实例源码介绍。由于做山寨QQ视频聊天的需要，做了一个视频通信窗口组件。现在分享一下供大家学习……

原创文章，转载请标明出处！谢谢！

工程文件下载地址：http://download.csdn.net/source/3378150

本文地址： http://mzhx-com.iteye.com/blog/1098698

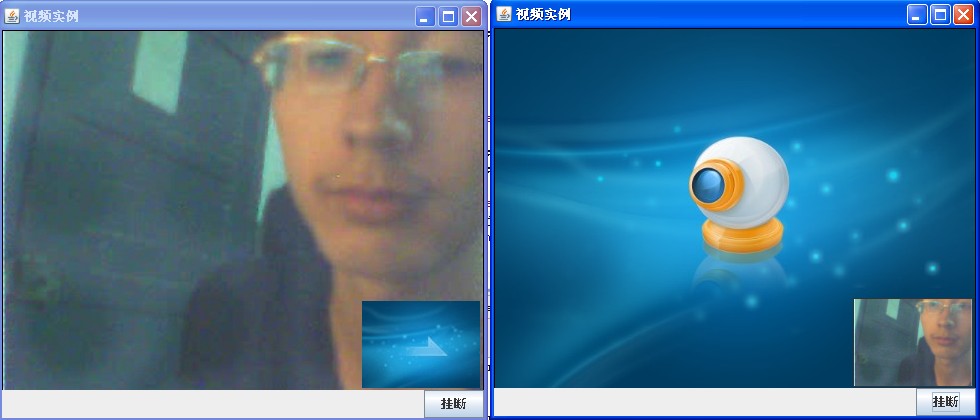

效果图如下：







三个类 源代码如下：



Java代码 复制代码 收藏代码
  1. package vidioPlay;
  3. import java.awt.Dimension;
  4. import java.io.IOException;
  5. import java.net.InetAddress;
  6. import java.util.Vector;
  8. import javax.media.CaptureDeviceInfo;
  9. import javax.media.Codec;
  10. import javax.media.Control;
  11. import javax.media.Controller;
  12. import javax.media.ControllerClosedEvent;
  13. import javax.media.ControllerEvent;
  14. import javax.media.ControllerListener;
  15. import javax.media.Format;
  16. import javax.media.IncompatibleSourceException;
  17. import javax.media.Manager;
  18. import javax.media.MediaLocator;
  19. import javax.media.NoProcessorException;
  20. import javax.media.Owned;
  21. import javax.media.Player;
  22. import javax.media.Processor;
  23. import javax.media.cdm.CaptureDeviceManager;
  24. import javax.media.control.QualityControl;
  25. import javax.media.control.TrackControl;
  26. import javax.media.format.AudioFormat;
  27. import javax.media.format.VideoFormat;
  28. import javax.media.protocol.ContentDescriptor;
  29. import javax.media.protocol.DataSource;
  30. import javax.media.protocol.PushBufferDataSource;
  31. import javax.media.protocol.PushBufferStream;
  32. import javax.media.protocol.SourceCloneable;
  33. import javax.media.rtp.RTPManager;
  34. import javax.media.rtp.SendStream;
  35. import javax.media.rtp.SessionAddress;
  36. import javax.media.rtp.rtcp.SourceDescription;
  37. import javax.swing.JFrame;
  39. public class MediaTransmit {
  41.     private String ipAddress;
  42.     private int portBase;
  43.     private MediaLocator audioLocator = null, vedioLocator = null;
  44.     private Processor audioProcessor = null;
  45.     private Processor videoProcessor = null;
  46.     private DataSource audioDataLocal = null, videoDataLocal = null;
  47.     private DataSource audioDataOutput = null, videoDataOutput = null;
  48.     private RTPManager rtpMgrs[];
  49.     private DataSource mediaData = null;
  50.     private DataSource dataLocalClone = null;
  52.     private PlayPane playFrame;
  54.     public MediaTransmit(String ipAddress, String pb) {
  55.         this.ipAddress = ipAddress;
  56. Integer integer = Integer.valueOf(pb);
  57.         if (integer != null) {
  58.             this.portBase = integer.intValue();
  59.         }
  60.         // /////////////////////////////////////////////
  61.         playFrame = new PlayPane();
  62.         JFrame jf = new JFrame(“视频实例”);
  64.         jf.add(playFrame);
  65.         jf.pack();
  66.         jf.setLocationRelativeTo(null);
  67.         jf.setDefaultCloseOperation(3);
  68.         jf.setVisible(true);
  69.         // ////////////////////////////////////////////
  70.         Vector<CaptureDeviceInfo> video = CaptureDeviceManager
  71.                 .getDeviceList(new VideoFormat(null));
  72.         Vector<CaptureDeviceInfo> audio = CaptureDeviceManager
  73.                 .getDeviceList(new AudioFormat(AudioFormat.LINEAR, 44100, 16, 2));
  74.         // MediaLocator mediaLocator = new
  75.         // MediaLocator(“file:/C:/纯音乐 – 忧伤还是快乐.mp3″);
  76.         if (audio != null && audio.size() > 0) {
  77.             audioLocator = ((CaptureDeviceInfo) audio.get(0)).getLocator();
  78.             if ((audioProcessor = createProcessor(audioLocator)) != null) {
  79.                 audioDataLocal = mediaData;
  80.                 audioDataOutput = audioProcessor.getDataOutput();
  81.             }
  82.         } else {
  83.             System.out.println(“******错误：没有检测到您的音频采集设备！！！”);
  84.         }
  85.         // /////////////////////////////////////////////////////////
  86.         if (video != null && video.size() > 0) {
  87.             vedioLocator = ((CaptureDeviceInfo) video.get(0)).getLocator();
  88.             if ((videoProcessor = createProcessor(vedioLocator)) != null) {
  89.                 videoDataLocal = mediaData;
  90.                 videoDataOutput = videoProcessor.getDataOutput();
  91.             }
  92.         } else {
  93.             System.out.println(“******错误：没有检测到您的视频设备！！！”);
  94.         }
  95.         // /////////////////////////////////////////////////////////
  96.         final DataSource[] dataSources = new DataSource[2];
  97.         dataSources[0] = audioDataLocal;
  98.         dataSources[1] = videoDataLocal;
  99.         try {
  100.             DataSource dsLocal = Manager.createMergingDataSource(dataSources);
  101.             playFrame.localPlay(dsLocal);
  102.         } catch (IncompatibleSourceException e) {
  103.             e.printStackTrace();
  104.             return;
  105.         }
  106.         // ////////////////////////////////////////////////远程传输
  107.         dataSources[1] = audioDataOutput;
  108.         dataSources[0] = videoDataOutput;
  110.         try {
  111. DataSource dsoutput = Manager.createMergingDataSource(dataSources);
  112.             createTransmitter(dsoutput);
  113.         } catch (IncompatibleSourceException e) {
  114.             e.printStackTrace();
  115.             return;
  116.         }
  117.         audioProcessor.start();
  118.         videoProcessor.start();
  119.     }
  121.     private Processor createProcessor(MediaLocator locator) {
  122.         Processor processor = null;
  123.         if (locator == null)
  124.             return null;
  125.         // 通过设备定位器得到数据源，
  126.         try {
  127.             mediaData = Manager.createDataSource(locator);
  128.             // 创建可克隆数据源
  129.             mediaData = Manager.createCloneableDataSource(mediaData);
  130.             // 克隆数据源，用于传输到远程
  131.             dataLocalClone = ((SourceCloneable) mediaData).createClone();
  132.         } catch (Exception e) {
  133.             e.printStackTrace();
  134.             return null;
  135.         }
  136.         try {
  137.             processor = javax.media.Manager.createProcessor(dataLocalClone);
  139.         } catch (NoProcessorException npe) {
  140.             npe.printStackTrace();
  141.             return null;
  142.         } catch (IOException ioe) {
  143.             return null;
  144.         }
  145.         boolean result = waitForState(processor, Processor.Configured);
  146.         if (result == false)
  147.             return null;
  149.         TrackControl[] tracks = processor.getTrackControls();
  150.         if (tracks == null || tracks.length < 1)
  151.             return null;
  152.         ContentDescriptor cd = new ContentDescriptor(ContentDescriptor.RAW_RTP);
  153.         processor.setContentDescriptor(cd);
  154.         Format supportedFormats[];
  155.         Format chosen;
  156.         boolean atLeastOneTrack = false;
  157.         for (int i = 0; i < tracks.length; i++) {
  158.             if (tracks[i].isEnabled()) {
  159.                 supportedFormats = tracks[i].getSupportedFormats();
  160.                 if (supportedFormats.length > 0) {
  161.                     if (supportedFormats[0] instanceof VideoFormat) {
  162.                         chosen = checkForVideoSizes(tracks[i].getFormat(),
  163.                                 supportedFormats[0]);
  164.                     } else
  165.                         chosen = supportedFormats[0];
  166.                     tracks[i].setFormat(chosen);
  167.                     System.err
  168.                             .println(“Track ” + i + ” is set to transmit as:”);
  169.                     System.err.println(“  ” + chosen);
  170.                     atLeastOneTrack = true;
  171.                 } else
  172.                     tracks[i].setEnabled(false);
  173.             } else
  174.                 tracks[i].setEnabled(false);
  175.         }
  177.         if (!atLeastOneTrack)
  178.             return null;
  179.         result = waitForState(processor, Controller.Realized);
  180.         if (result == false)
  181.             return null;
  182.         setJPEGQuality(processor, 0.5f);
  184.         return processor;
  185.     }
  187.     private String createTransmitter(DataSource dataOutput) {
  188.         PushBufferDataSource pbds = (PushBufferDataSource) dataOutput;
  189.         PushBufferStream pbss[] = pbds.getStreams();
  190.         System.out.println(“pbss.length:” + pbss.length);
  191.         rtpMgrs = new RTPManager[pbss.length];
  192.         SendStream sendStream;
  193.         int port;
  194.         // SourceDescription srcDesList[];
  196.         for (int i = 0; i < pbss.length; i++) {
  197.             try {
  198.                 rtpMgrs[i] = RTPManager.newInstance();
  200.                 port = portBase + 2 * i;
  201.                 SessionAddress localAddr = new SessionAddress(
  202.                         InetAddress.getLocalHost(), port);
  203.                 SessionAddress destAddr = new SessionAddress(
  204.                         InetAddress.getByName(ipAddress), port);
  205.                 rtpMgrs[i].initialize(localAddr);
  206.                 rtpMgrs[i].addTarget(destAddr);
  207.                 System.out.println(“Created RTP session: “
  208.                         + InetAddress.getLocalHost() + ” ” + port);
  209.                 sendStream = rtpMgrs[i].createSendStream(dataOutput, i);
  210.                 sendStream.start();
  211.             } catch (Exception e) {
  212.                 e.printStackTrace();
  213.                 return e.getMessage();
  214.             }
  215.         }
  217.         return null;
  218.     }
  219.     Format checkForVideoSizes(Format original, Format supported) {
  221.         int width, height;
  222.         Dimension size = ((VideoFormat) original).getSize();
  223.         Format jpegFmt = new Format(VideoFormat.JPEG_RTP);
  224.         Format h263Fmt = new Format(VideoFormat.H263_RTP);
  226.         if (supported.matches(jpegFmt)) {
  227.             width = (size.width % 8 == 0 ? size.width
  228.                     : (int) (size.width / 8) * 8);
  229.             height = (size.height % 8 == 0 ? size.height
  230.                     : (int) (size.height / 8) * 8);
  231.         } else if (supported.matches(h263Fmt)) {
  232.             if (size.width < 128) {
  233.                 width = 128;
  234.                 height = 96;
  235.             } else if (size.width < 176) {
  236.                 width = 176;
  237.                 height = 144;
  238.             } else {
  239.                 width = 352;
  240.                 height = 288;
  241.             }
  242.         } else {
  243.             return supported;
  244.         }
  246.         return (new VideoFormat(null, new Dimension(width, height),
  247.                 Format.NOT_SPECIFIED, null, Format.NOT_SPECIFIED))
  248.                 .intersects(supported);
  249.     }
  250.     void setJPEGQuality(Player p, float val) {
  252.         Control cs[] = p.getControls();
  253.         QualityControl qc = null;
  254.         VideoFormat jpegFmt = new VideoFormat(VideoFormat.JPEG);
  255.         for (int i = 0; i < cs.length; i++) {
  257.             if (cs[i] instanceof QualityControl && cs[i] instanceof Owned) {
  258.                 Object owner = ((Owned) cs[i]).getOwner();
  259.                 if (owner instanceof Codec) {
  260.                     Format fmts[] = ((Codec) owner)
  261.                             .getSupportedOutputFormats(null);
  262.                     for (int j = 0; j < fmts.length; j++) {
  263.                         if (fmts[j].matches(jpegFmt)) {
  264.                             qc = (QualityControl) cs[i];
  265.                             qc.setQuality(val);
  266.                             System.err.println(“- Setting quality to ” + val
  267.                                     + ” on ” + qc);
  268.                             break;
  269.                         }
  270.                     }
  271.                 }
  272.                 if (qc != null)
  273.                     break;
  274.             }
  275.         }
  276.     }
  277.     private Integer stateLock = new Integer(0);
  278.     private boolean failed = false;
  280.     Integer getStateLock() {
  281.         return stateLock;
  282.     }
  284.     void setFailed() {
  285.         failed = true;
  286.     }
  288.     private synchronized boolean waitForState(Processor p, int state) {
  289.         p.addControllerListener(new StateListener());
  290.         failed = false;
  291.         if (state == Processor.Configured) {
  292.             p.configure();
  293.         } else if (state == Processor.Realized) {
  294.             p.realize();
  295.         }
  296.         while (p.getState() < state && !failed) {
  297.             synchronized (getStateLock()) {
  298.                 try {
  299.                     getStateLock().wait();
  300.                 } catch (InterruptedException ie) {
  301.                     return false;
  302.                 }
  303.             }
  304.         }
  306.         if (failed)
  307.             return false;
  308.         else
  309.             return true;
  310.     }
  311.     class StateListener implements ControllerListener {
  313.         public void controllerUpdate(ControllerEvent ce) {
  315.             if (ce instanceof ControllerClosedEvent)
  316.                 setFailed();
  318.             if (ce instanceof ControllerEvent) {
  319.                 synchronized (getStateLock()) {
  320.                     getStateLock().notifyAll();
  321.                 }
  322.             }
  323.         }
  324.     }
  325.     public static void main(String[] args) {
  326.         String[] strs = { “localhost”, “9994″ };
  327.         new MediaTransmit(strs[0], strs[1]);
  328.     }
  329. }
package vidioPlay;

import java.awt.Dimension;
import java.io.IOException;
import java.net.InetAddress;
import java.util.Vector;

import javax.media.CaptureDeviceInfo;
import javax.media.Codec;
import javax.media.Control;
import javax.media.Controller;
import javax.media.ControllerClosedEvent;
import javax.media.ControllerEvent;
import javax.media.ControllerListener;
import javax.media.Format;
import javax.media.IncompatibleSourceException;
import javax.media.Manager;
import javax.media.MediaLocator;
import javax.media.NoProcessorException;
import javax.media.Owned;
import javax.media.Player;
import javax.media.Processor;
import javax.media.cdm.CaptureDeviceManager;
import javax.media.control.QualityControl;
import javax.media.control.TrackControl;
import javax.media.format.AudioFormat;
import javax.media.format.VideoFormat;
import javax.media.protocol.ContentDescriptor;
import javax.media.protocol.DataSource;
import javax.media.protocol.PushBufferDataSource;
import javax.media.protocol.PushBufferStream;
import javax.media.protocol.SourceCloneable;
import javax.media.rtp.RTPManager;
import javax.media.rtp.SendStream;
import javax.media.rtp.SessionAddress;
import javax.media.rtp.rtcp.SourceDescription;
import javax.swing.JFrame;

public class MediaTransmit {

	private String ipAddress;
	private int portBase;
	private MediaLocator audioLocator = null, vedioLocator = null;
	private Processor audioProcessor = null;
	private Processor videoProcessor = null;
	private DataSource audioDataLocal = null, videoDataLocal = null;
	private DataSource audioDataOutput = null, videoDataOutput = null;
	private RTPManager rtpMgrs[];
	private DataSource mediaData = null;
	private DataSource dataLocalClone = null;

	private PlayPane playFrame;

	public MediaTransmit(String ipAddress, String pb) {
		this.ipAddress = ipAddress;
		Integer integer = Integer.valueOf(pb);
		if (integer != null) {
			this.portBase = integer.intValue();
		}
		// /////////////////////////////////////////////
		playFrame = new PlayPane();
		JFrame jf = new JFrame("视频实例");

		jf.add(playFrame);
		jf.pack();
		jf.setLocationRelativeTo(null);
		jf.setDefaultCloseOperation(3);
		jf.setVisible(true);
		// ////////////////////////////////////////////
		Vector<CaptureDeviceInfo> video = CaptureDeviceManager
				.getDeviceList(new VideoFormat(null));
		Vector<CaptureDeviceInfo> audio = CaptureDeviceManager
				.getDeviceList(new AudioFormat(AudioFormat.LINEAR, 44100, 16, 2));
		// MediaLocator mediaLocator = new
		// MediaLocator("file:/C:/纯音乐 - 忧伤还是快乐.mp3");
		if (audio != null && audio.size() > 0) {
			audioLocator = ((CaptureDeviceInfo) audio.get(0)).getLocator();
			if ((audioProcessor = createProcessor(audioLocator)) != null) {
				audioDataLocal = mediaData;
				audioDataOutput = audioProcessor.getDataOutput();
			}
		} else {
			System.out.println("******错误：没有检测到您的音频采集设备！！！");
		}
		// /////////////////////////////////////////////////////////
		if (video != null && video.size() > 0) {
			vedioLocator = ((CaptureDeviceInfo) video.get(0)).getLocator();
			if ((videoProcessor = createProcessor(vedioLocator)) != null) {
				videoDataLocal = mediaData;
				videoDataOutput = videoProcessor.getDataOutput();
			}
		} else {
			System.out.println("******错误：没有检测到您的视频设备！！！");
		}
		// /////////////////////////////////////////////////////////
		final DataSource[] dataSources = new DataSource[2];
		dataSources[0] = audioDataLocal;
		dataSources[1] = videoDataLocal;
		try {
			DataSource dsLocal = Manager.createMergingDataSource(dataSources);
			playFrame.localPlay(dsLocal);
		} catch (IncompatibleSourceException e) {
			e.printStackTrace();
			return;
		}
		// ////////////////////////////////////////////////远程传输
		dataSources[1] = audioDataOutput;
		dataSources[0] = videoDataOutput;

		try {
			DataSource dsoutput = Manager.createMergingDataSource(dataSources);
			createTransmitter(dsoutput);
		} catch (IncompatibleSourceException e) {
			e.printStackTrace();
			return;
		}
		audioProcessor.start();
		videoProcessor.start();
	}

	private Processor createProcessor(MediaLocator locator) {
		Processor processor = null;
		if (locator == null)
			return null;
		// 通过设备定位器得到数据源，
		try {
			mediaData = Manager.createDataSource(locator);
			// 创建可克隆数据源
			mediaData = Manager.createCloneableDataSource(mediaData);
			// 克隆数据源，用于传输到远程
			dataLocalClone = ((SourceCloneable) mediaData).createClone();
		} catch (Exception e) {
			e.printStackTrace();
			return null;
		}
		try {
			processor = javax.media.Manager.createProcessor(dataLocalClone);

		} catch (NoProcessorException npe) {
			npe.printStackTrace();
			return null;
		} catch (IOException ioe) {
			return null;
		}
		boolean result = waitForState(processor, Processor.Configured);
		if (result == false)
			return null;

		TrackControl[] tracks = processor.getTrackControls();
		if (tracks == null || tracks.length < 1)
			return null;
		ContentDescriptor cd = new ContentDescriptor(ContentDescriptor.RAW_RTP);
		processor.setContentDescriptor(cd);
		Format supportedFormats[];
		Format chosen;
		boolean atLeastOneTrack = false;
		for (int i = 0; i < tracks.length; i++) {
			if (tracks[i].isEnabled()) {
				supportedFormats = tracks[i].getSupportedFormats();
				if (supportedFormats.length > 0) {
					if (supportedFormats[0] instanceof VideoFormat) {
						chosen = checkForVideoSizes(tracks[i].getFormat(),
								supportedFormats[0]);
					} else
						chosen = supportedFormats[0];
					tracks[i].setFormat(chosen);
					System.err
							.println("Track " + i + " is set to transmit as:");
					System.err.println("  " + chosen);
					atLeastOneTrack = true;
				} else
					tracks[i].setEnabled(false);
			} else
				tracks[i].setEnabled(false);
		}

		if (!atLeastOneTrack)
			return null;
		result = waitForState(processor, Controller.Realized);
		if (result == false)
			return null;
		setJPEGQuality(processor, 0.5f);

		return processor;
	}

	private String createTransmitter(DataSource dataOutput) {
		PushBufferDataSource pbds = (PushBufferDataSource) dataOutput;
		PushBufferStream pbss[] = pbds.getStreams();
		System.out.println("pbss.length:" + pbss.length);
		rtpMgrs = new RTPManager[pbss.length];
		SendStream sendStream;
		int port;
		// SourceDescription srcDesList[];

		for (int i = 0; i < pbss.length; i++) {
			try {
				rtpMgrs[i] = RTPManager.newInstance();

				port = portBase + 2 * i;
				SessionAddress localAddr = new SessionAddress(
						InetAddress.getLocalHost(), port);
				SessionAddress destAddr = new SessionAddress(
						InetAddress.getByName(ipAddress), port);
				rtpMgrs[i].initialize(localAddr);
				rtpMgrs[i].addTarget(destAddr);
				System.out.println("Created RTP session: "
						+ InetAddress.getLocalHost() + " " + port);
				sendStream = rtpMgrs[i].createSendStream(dataOutput, i);
				sendStream.start();
			} catch (Exception e) {
				e.printStackTrace();
				return e.getMessage();
			}
		}

		return null;
	}
	Format checkForVideoSizes(Format original, Format supported) {

		int width, height;
		Dimension size = ((VideoFormat) original).getSize();
		Format jpegFmt = new Format(VideoFormat.JPEG_RTP);
		Format h263Fmt = new Format(VideoFormat.H263_RTP);

		if (supported.matches(jpegFmt)) {
			width = (size.width % 8 == 0 ? size.width
					: (int) (size.width / 8) * 8);
			height = (size.height % 8 == 0 ? size.height
					: (int) (size.height / 8) * 8);
		} else if (supported.matches(h263Fmt)) {
			if (size.width < 128) {
				width = 128;
				height = 96;
			} else if (size.width < 176) {
				width = 176;
				height = 144;
			} else {
				width = 352;
				height = 288;
			}
		} else {
			return supported;
		}

		return (new VideoFormat(null, new Dimension(width, height),
				Format.NOT_SPECIFIED, null, Format.NOT_SPECIFIED))
				.intersects(supported);
	}
	void setJPEGQuality(Player p, float val) {

		Control cs[] = p.getControls();
		QualityControl qc = null;
		VideoFormat jpegFmt = new VideoFormat(VideoFormat.JPEG);
		for (int i = 0; i < cs.length; i++) {

			if (cs[i] instanceof QualityControl && cs[i] instanceof Owned) {
				Object owner = ((Owned) cs[i]).getOwner();
				if (owner instanceof Codec) {
					Format fmts[] = ((Codec) owner)
							.getSupportedOutputFormats(null);
					for (int j = 0; j < fmts.length; j++) {
						if (fmts[j].matches(jpegFmt)) {
							qc = (QualityControl) cs[i];
							qc.setQuality(val);
							System.err.println("- Setting quality to " + val
									+ " on " + qc);
							break;
						}
					}
				}
				if (qc != null)
					break;
			}
		}
	}
	private Integer stateLock = new Integer(0);
	private boolean failed = false;

	Integer getStateLock() {
		return stateLock;
	}

	void setFailed() {
		failed = true;
	}

	private synchronized boolean waitForState(Processor p, int state) {
		p.addControllerListener(new StateListener());
		failed = false;
		if (state == Processor.Configured) {
			p.configure();
		} else if (state == Processor.Realized) {
			p.realize();
		}
		while (p.getState() < state && !failed) {
			synchronized (getStateLock()) {
				try {
					getStateLock().wait();
				} catch (InterruptedException ie) {
					return false;
				}
			}
		}

		if (failed)
			return false;
		else
			return true;
	}
	class StateListener implements ControllerListener {

		public void controllerUpdate(ControllerEvent ce) {

			if (ce instanceof ControllerClosedEvent)
				setFailed();

			if (ce instanceof ControllerEvent) {
				synchronized (getStateLock()) {
					getStateLock().notifyAll();
				}
			}
		}
	}
	public static void main(String[] args) {
		String[] strs = { "localhost", "9994" };
		new MediaTransmit(strs[0], strs[1]);
	}
}








Java代码 复制代码 收藏代码
  1. package vidioPlay;
  3. import java.awt.BorderLayout;
  4. import java.awt.Component;
  5. import java.awt.Dimension;
  6. import java.awt.Panel;
  7. import java.net.InetAddress;
  8. import java.util.Vector;
  10. import javax.media.ControllerErrorEvent;
  11. import javax.media.ControllerEvent;
  12. import javax.media.ControllerListener;
  13. import javax.media.Player;
  14. import javax.media.RealizeCompleteEvent;
  15. import javax.media.bean.playerbean.MediaPlayer;
  16. import javax.media.control.BufferControl;
  17. import javax.media.format.FormatChangeEvent;
  18. import javax.media.protocol.DataSource;
  19. import javax.media.rtp.Participant;
  20. import javax.media.rtp.RTPControl;
  21. import javax.media.rtp.RTPManager;
  22. import javax.media.rtp.ReceiveStream;
  23. import javax.media.rtp.ReceiveStreamListener;
  24. import javax.media.rtp.SessionListener;
  25. import javax.media.rtp.event.ByeEvent;
  26. import javax.media.rtp.event.NewParticipantEvent;
  27. import javax.media.rtp.event.NewReceiveStreamEvent;
  28. import javax.media.rtp.event.ReceiveStreamEvent;
  29. import javax.media.rtp.event.RemotePayloadChangeEvent;
  30. import javax.media.rtp.event.SessionEvent;
  31. import javax.media.rtp.event.StreamMappedEvent;
  32. import javax.swing.JFrame;
  34. import net.sf.fmj.media.rtp.RTPSocketAdapter;
  37. public class MediaReceive implements ReceiveStreamListener, SessionListener,
  38.         ControllerListener {
  39.     String sessions[] = null;
  40.     RTPManager mgrs[] = null;
  42.     boolean dataReceived = false;
  43.     Object dataSync = new Object();
  44.     private PlayPane playFrame;
  46.     public MediaReceive(String sessions[]) {
  47.         this.sessions = sessions;
  48.     }
  50.     protected void initialize() {
  51.         playFrame = new PlayPane();
  52.         JFrame jf = new JFrame(“视频实例”);
  54.         jf.add(playFrame);
  55.         jf.pack();
  56.         jf.setLocationRelativeTo(null);
  57.         jf.setDefaultCloseOperation(3);
  58.         jf.setVisible(true);
  59.         try {
  60.             // 每一个session对应一个RTPManager
  61.             mgrs = new RTPManager[sessions.length];
  62.             // 创建播放窗口的向量vector
  64.             SessionLabel session = null;
  66.             // Open the RTP sessions.
  67.             // 针对每一个会话对象进行ip、port和ttl的解析
  68.             for (int i = 0; i < sessions.length; i++) {
  70.                 // Parse the session addresses.
  71.                 // 进行会话对象的解析，得到ip、port和ttl
  72.                 try {
  73.                     session = new SessionLabel(sessions[i]);
  74.                 } catch (IllegalArgumentException e) {
  75.                     System.err
  76.                             .println(“Failed to parse the session address given: “
  77.                                     + sessions[i]);
  78.                     // return false;
  79.                 }
  81.                 System.err.println(“  – Open RTP session for: addr: “
  82.                         + session.addr + ” port: ” + session.port + ” ttl: “
  83.                         + session.ttl);
  84.                 // 这对本条会话对象创建RTPManager
  85.                 mgrs[i] = (RTPManager) RTPManager.newInstance();
  86.                 mgrs[i].addSessionListener(this);
  87.                 mgrs[i].addReceiveStreamListener(this);
  89.                 // Initialize the RTPManager with the RTPSocketAdapter
  90.                 // 将本机ip和端口号加入RTP会话管理
  91.                 System.out.println(“session.addr:” + session.addr);
  92.                 mgrs[i].initialize(new RTPSocketAdapter(InetAddress
  93.                         .getByName(session.addr), session.port, session.ttl));
  94.                 BufferControl bc = (BufferControl) mgrs[i]
  95.                         .getControl(“javax.media.control.BufferControl”);
  96.                 if (bc != null)
  97.                     bc.setBufferLength(350);
  98.             }
  100.         } catch (Exception e) {
  101.             e.printStackTrace();
  102.         }
  103.     }
  105.     /**
  106.      * Close the players and the session managers.
  107.      */
  108.     protected void close() {
  110.         // close the RTP session.
  111.         for (int i = 0; i < mgrs.length; i++) {
  112.             if (mgrs[i] != null) {
  113.                 mgrs[i].removeTargets(“Closing session from AVReceive3″);
  114.                 mgrs[i].dispose();
  115.                 mgrs[i] = null;
  116.             }
  117.         }
  118.     }
  120.     /**
  121.      * SessionListener.
  122.      */
  123.     @SuppressWarnings(“deprecation”)
  124.     public synchronized void update(SessionEvent evt) {
  126.         if (evt instanceof NewParticipantEvent) {
  127.             Participant p = ((NewParticipantEvent) evt).getParticipant();
  128.             System.err.println(“  – A new participant had just joined: ” + p);
  129.         }
  130.     }
  132.     /**
  133.      * ReceiveStreamListener
  134.      */
  135.     public synchronized void update(ReceiveStreamEvent evt) {
  137.         RTPManager mgr = (RTPManager) evt.getSource();
  138.         Participant participant = evt.getParticipant(); // could be null.
  139.         ReceiveStream stream = evt.getReceiveStream(); // could be null.
  141.         if (evt instanceof RemotePayloadChangeEvent) {
  143.             System.err.println(“  – Received an RTP PayloadChangeEvent.”);
  144.             System.err.println(“Sorry, cannot handle payload change.”);
  145.             // System.exit(0);
  147.         }
  149.         else if (evt instanceof NewReceiveStreamEvent) {
  150.             System.out.println(“evt instanceof NewReceiveStreamEvent”);
  151.             try {
  152.                 stream = ((NewReceiveStreamEvent) evt).getReceiveStream();
  153.                 final DataSource data = stream.getDataSource();
  155.                 // Find out the formats.
  156.                 RTPControl ctl = (RTPControl) data
  157.                         .getControl(“javax.media.rtp.RTPControl”);
  158.                 if (ctl != null) {
  159.                     System.err.println(“  – Recevied new RTP stream: “
  160.                             + ctl.getFormat());
  161.                 } else
  162.                     System.err.println(“  – Recevied new RTP stream”);
  164.                 if (participant == null)
  165.                     System.err
  166.                             .println(“      The sender of this stream had yet to be identified.”);
  167.                 else {
  168.                     System.err.println(“      The stream comes from: “
  169.                             + participant.getCNAME());
  170.                 }
  172.                 // create a player by passing datasource to the Media Manager
  173.                 new Thread() {
  174.                     public void run() {
  175.                         playFrame.remotePlay(data);
  176.                     }
  177.                 }.start();
  178.                 // Player p = javax.media.Manager.createPlayer(data);
  179.                 // if (p == null)
  180.                 // return;
  181.                 //
  182.                 // p.addControllerListener(this);
  183.                 // p.realize();
  184.                 // PlayerWindow pw = new PlayerWindow(p, stream);
  185.                 // playerWindows.addElement(pw);
  187.                 // Notify intialize() that a new stream had arrived.
  188.                 synchronized (dataSync) {
  189.                     dataReceived = true;
  190.                     dataSync.notifyAll();
  191.                 }
  193.             } catch (Exception e) {
  194.                 System.err.println(“NewReceiveStreamEvent exception “
  195.                         + e.getMessage());
  196.                 return;
  197.             }
  199.         }
  201.         else if (evt instanceof StreamMappedEvent) {
  202.             System.out.println(“evt instanceof StreamMappedEvent”);
  203.             stream = ((StreamMappedEvent) evt).getReceiveStream();
  204.             if (stream != null && stream.getDataSource() != null) {
  205.                 DataSource ds = stream.getDataSource();
  206.                 // Find out the formats.
  207.                 RTPControl ctl = (RTPControl) ds
  208.                         .getControl(“javax.media.rtp.RTPControl”);
  209.                 System.err.println(“  – The previously unidentified stream “);
  210.                 if (ctl != null)
  211.                     System.err.println(“      ” + ctl.getFormat());
  212.                 System.err.println(“      had now been identified as sent by: “
  213.                         + participant.getCNAME());
  214.                 System.out.println(“ds == null” + (ds == null));
  215.             }
  216.         }
  218.         else if (evt instanceof ByeEvent) {
  220.             System.err.println(“  – Got \”bye\” from: “
  221.                     + participant.getCNAME());
  223.         }
  225.     }
  227.     /**
  228.      * ControllerListener for the Players.
  229.      */
  230.     public synchronized void controllerUpdate(ControllerEvent ce) {
  232.         Player p = (Player) ce.getSourceController();
  234.         if (p == null)
  235.             return;
  237.     }
  239.     /**
  240.      * A utility class to parse the session addresses.
  241.      */
  242.     class SessionLabel {
  244.         public String addr = null;
  245.         public int port;
  246.         public int ttl = 1;
  248.         SessionLabel(String session) throws IllegalArgumentException {
  250.             int off;
  251.             String portStr = null, ttlStr = null;
  253.             if (session != null && session.length() > 0) {
  254.                 while (session.length() > 1 && session.charAt(0) == ‘/’) {
  255.                     session = session.substring(1);
  256.                 }
  257.                 off = session.indexOf(‘/’);
  258.                 if (off == -1) {
  259.                     if (!session.equals(“”))
  260.                         addr = session;
  261.                 } else {
  262.                     addr = session.substring(0, off);
  263.                     session = session.substring(off + 1);
  264.                     off = session.indexOf(‘/’);
  265.                     if (off == -1) {
  266.                         if (!session.equals(“”))
  267.                             portStr = session;
  268.                     } else {
  269.                         portStr = session.substring(0, off);
  270.                         session = session.substring(off + 1);
  271.                         off = session.indexOf(‘/’);
  272.                         if (off == -1) {
  273.                             if (!session.equals(“”))
  274.                                 ttlStr = session;
  275.                         } else {
  276.                             ttlStr = session.substring(0, off);
  277.                         }
  278.                     }
  279.                 }
  280.             }
  282.             if (addr == null)
  283.                 throw new IllegalArgumentException();
  285.             if (portStr != null) {
  286.                 try {
  287.                     Integer integer = Integer.valueOf(portStr);
  288.                     if (integer != null)
  289.                         port = integer.intValue();
  290.                 } catch (Throwable t) {
  291.                     throw new IllegalArgumentException();
  292.                 }
  293.             } else
  294.                 throw new IllegalArgumentException();
  296.             if (ttlStr != null) {
  297.                 try {
  298.                     Integer integer = Integer.valueOf(ttlStr);
  299.                     if (integer != null)
  300.                         ttl = integer.intValue();
  301.                 } catch (Throwable t) {
  302.                     throw new IllegalArgumentException();
  303.                 }
  304.             }
  305.         }
  306.     }
  309.     public static void main(String argv[]) {
  310.         String[] strs = { “125.221.165.126/9994″, “125.221.165.126/9996″ };
  311.         MediaReceive avReceive = new MediaReceive(strs);
  312.         avReceive.initialize();
  314.     }
  315. }
package vidioPlay;

import java.awt.BorderLayout;
import java.awt.Component;
import java.awt.Dimension;
import java.awt.Panel;
import java.net.InetAddress;
import java.util.Vector;

import javax.media.ControllerErrorEvent;
import javax.media.ControllerEvent;
import javax.media.ControllerListener;
import javax.media.Player;
import javax.media.RealizeCompleteEvent;
import javax.media.bean.playerbean.MediaPlayer;
import javax.media.control.BufferControl;
import javax.media.format.FormatChangeEvent;
import javax.media.protocol.DataSource;
import javax.media.rtp.Participant;
import javax.media.rtp.RTPControl;
import javax.media.rtp.RTPManager;
import javax.media.rtp.ReceiveStream;
import javax.media.rtp.ReceiveStreamListener;
import javax.media.rtp.SessionListener;
import javax.media.rtp.event.ByeEvent;
import javax.media.rtp.event.NewParticipantEvent;
import javax.media.rtp.event.NewReceiveStreamEvent;
import javax.media.rtp.event.ReceiveStreamEvent;
import javax.media.rtp.event.RemotePayloadChangeEvent;
import javax.media.rtp.event.SessionEvent;
import javax.media.rtp.event.StreamMappedEvent;
import javax.swing.JFrame;

import net.sf.fmj.media.rtp.RTPSocketAdapter;

public class MediaReceive implements ReceiveStreamListener, SessionListener,
		ControllerListener {
	String sessions[] = null;
	RTPManager mgrs[] = null;

	boolean dataReceived = false;
	Object dataSync = new Object();
	private PlayPane playFrame;

	public MediaReceive(String sessions[]) {
		this.sessions = sessions;
	}

	protected void initialize() {
		playFrame = new PlayPane();
		JFrame jf = new JFrame("视频实例");

		jf.add(playFrame);
		jf.pack();
		jf.setLocationRelativeTo(null);
		jf.setDefaultCloseOperation(3);
		jf.setVisible(true);
		try {
			// 每一个session对应一个RTPManager
			mgrs = new RTPManager[sessions.length];
			// 创建播放窗口的向量vector

			SessionLabel session = null;

			// Open the RTP sessions.
			// 针对每一个会话对象进行ip、port和ttl的解析
			for (int i = 0; i < sessions.length; i++) {

				// Parse the session addresses.
				// 进行会话对象的解析，得到ip、port和ttl
				try {
					session = new SessionLabel(sessions[i]);
				} catch (IllegalArgumentException e) {
					System.err
							.println("Failed to parse the session address given: "
									+ sessions[i]);
					// return false;
				}

				System.err.println("  - Open RTP session for: addr: "
						+ session.addr + " port: " + session.port + " ttl: "
						+ session.ttl);
				// 这对本条会话对象创建RTPManager
				mgrs[i] = (RTPManager) RTPManager.newInstance();
				mgrs[i].addSessionListener(this);
				mgrs[i].addReceiveStreamListener(this);

				// Initialize the RTPManager with the RTPSocketAdapter
				// 将本机ip和端口号加入RTP会话管理
				System.out.println("session.addr:" + session.addr);
				mgrs[i].initialize(new RTPSocketAdapter(InetAddress
						.getByName(session.addr), session.port, session.ttl));
				BufferControl bc = (BufferControl) mgrs[i]
						.getControl("javax.media.control.BufferControl");
				if (bc != null)
					bc.setBufferLength(350);
			}

		} catch (Exception e) {
			e.printStackTrace();
		}
	}

	/**
	 * Close the players and the session managers.
	 */
	protected void close() {

		// close the RTP session.
		for (int i = 0; i < mgrs.length; i++) {
			if (mgrs[i] != null) {
				mgrs[i].removeTargets("Closing session from AVReceive3");
				mgrs[i].dispose();
				mgrs[i] = null;
			}
		}
	}

	/**
	 * SessionListener.
	 */
	@SuppressWarnings("deprecation")
	public synchronized void update(SessionEvent evt) {

		if (evt instanceof NewParticipantEvent) {
			Participant p = ((NewParticipantEvent) evt).getParticipant();
			System.err.println("  - A new participant had just joined: " + p);
		}
	}

	/**
	 * ReceiveStreamListener
	 */
	public synchronized void update(ReceiveStreamEvent evt) {

		RTPManager mgr = (RTPManager) evt.getSource();
		Participant participant = evt.getParticipant(); // could be null.
		ReceiveStream stream = evt.getReceiveStream(); // could be null.

		if (evt instanceof RemotePayloadChangeEvent) {

			System.err.println("  - Received an RTP PayloadChangeEvent.");
			System.err.println("Sorry, cannot handle payload change.");
			// System.exit(0);

		}

		else if (evt instanceof NewReceiveStreamEvent) {
			System.out.println("evt instanceof NewReceiveStreamEvent");
			try {
				stream = ((NewReceiveStreamEvent) evt).getReceiveStream();
				final DataSource data = stream.getDataSource();

				// Find out the formats.
				RTPControl ctl = (RTPControl) data
						.getControl("javax.media.rtp.RTPControl");
				if (ctl != null) {
					System.err.println("  - Recevied new RTP stream: "
							+ ctl.getFormat());
				} else
					System.err.println("  - Recevied new RTP stream");

				if (participant == null)
					System.err
							.println("      The sender of this stream had yet to be identified.");
				else {
					System.err.println("      The stream comes from: "
							+ participant.getCNAME());
				}

				// create a player by passing datasource to the Media Manager
				new Thread() {
					public void run() {
						playFrame.remotePlay(data);
					}
				}.start();
				// Player p = javax.media.Manager.createPlayer(data);
				// if (p == null)
				// return;
				//
				// p.addControllerListener(this);
				// p.realize();
				// PlayerWindow pw = new PlayerWindow(p, stream);
				// playerWindows.addElement(pw);

				// Notify intialize() that a new stream had arrived.
				synchronized (dataSync) {
					dataReceived = true;
					dataSync.notifyAll();
				}

			} catch (Exception e) {
				System.err.println("NewReceiveStreamEvent exception "
						+ e.getMessage());
				return;
			}

		}

		else if (evt instanceof StreamMappedEvent) {
			System.out.println("evt instanceof StreamMappedEvent");
			stream = ((StreamMappedEvent) evt).getReceiveStream();
			if (stream != null && stream.getDataSource() != null) {
				DataSource ds = stream.getDataSource();
				// Find out the formats.
				RTPControl ctl = (RTPControl) ds
						.getControl("javax.media.rtp.RTPControl");
				System.err.println("  - The previously unidentified stream ");
				if (ctl != null)
					System.err.println("      " + ctl.getFormat());
				System.err.println("      had now been identified as sent by: "
						+ participant.getCNAME());
				System.out.println("ds == null" + (ds == null));
			}
		}

		else if (evt instanceof ByeEvent) {

			System.err.println("  - Got \"bye\" from: "
					+ participant.getCNAME());

		}

	}

	/**
	 * ControllerListener for the Players.
	 */
	public synchronized void controllerUpdate(ControllerEvent ce) {

		Player p = (Player) ce.getSourceController();

		if (p == null)
			return;

	}

	/**
	 * A utility class to parse the session addresses.
	 */
	class SessionLabel {

		public String addr = null;
		public int port;
		public int ttl = 1;

		SessionLabel(String session) throws IllegalArgumentException {

			int off;
			String portStr = null, ttlStr = null;

			if (session != null && session.length() > 0) {
				while (session.length() > 1 && session.charAt(0) == '/') {
					session = session.substring(1);
				}
				off = session.indexOf('/');
				if (off == -1) {
					if (!session.equals(""))
						addr = session;
				} else {
					addr = session.substring(0, off);
					session = session.substring(off + 1);
					off = session.indexOf('/');
					if (off == -1) {
						if (!session.equals(""))
							portStr = session;
					} else {
						portStr = session.substring(0, off);
						session = session.substring(off + 1);
						off = session.indexOf('/');
						if (off == -1) {
							if (!session.equals(""))
								ttlStr = session;
						} else {
							ttlStr = session.substring(0, off);
						}
					}
				}
			}

			if (addr == null)
				throw new IllegalArgumentException();

			if (portStr != null) {
				try {
					Integer integer = Integer.valueOf(portStr);
					if (integer != null)
						port = integer.intValue();
				} catch (Throwable t) {
					throw new IllegalArgumentException();
				}
			} else
				throw new IllegalArgumentException();

			if (ttlStr != null) {
				try {
					Integer integer = Integer.valueOf(ttlStr);
					if (integer != null)
						ttl = integer.intValue();
				} catch (Throwable t) {
					throw new IllegalArgumentException();
				}
			}
		}
	}

	public static void main(String argv[]) {
		String[] strs = { "125.221.165.126/9994", "125.221.165.126/9996" };
		MediaReceive avReceive = new MediaReceive(strs);
		avReceive.initialize();

	}
}







Java代码 复制代码 收藏代码
  1. package vidioPlay;
  3. import java.awt.BorderLayout;
  4. import java.awt.Color;
  5. import java.awt.Component;
  6. import java.awt.Dimension;
  7. import java.awt.FlowLayout;
  8. import java.awt.Graphics;
  9. import java.awt.Rectangle;
  10. import java.awt.event.ActionEvent;
  11. import java.awt.event.ActionListener;
  12. import java.io.IOException;
  14. import javax.media.ControllerEvent;
  15. import javax.media.ControllerListener;
  16. import javax.media.DataSink;
  17. import javax.media.NoPlayerException;
  18. import javax.media.Player;
  19. import javax.media.Processor;
  20. import javax.media.protocol.DataSource;
  21. import javax.swing.ImageIcon;
  22. import javax.swing.JButton;
  23. import javax.swing.JPanel;
  25. public class PlayPane extends JPanel {
  26.     private ImageIcon videoReqIcon = new ImageIcon(“videoReq.jpg”);
  27.     private ImageIcon VideolocalIcon = new ImageIcon(“localVideo.jpg”);
  28.     private boolean isViewBigPlaying = false;
  29.     private boolean isViewSmallPlaying = false;
  30.     private JPanel viewBigPane;
  31.     private JPanel viewSmallPane;
  32.     private JPanel controlPane;
  34.     private JButton closeButton;
  36.     private boolean localPlay = false;
  37.     private boolean remotePlay = false;
  39.     private DataSource localData;
  40.     private DataSource remoteData;
  42.     private boolean isViewRun = true;
  43.     private boolean isShow = true;
  44.     //
  45.     private Player localPlayer = null;
  46.     private Player remotePlayer = null;
  47.     //
  48.     private Processor videotapeProcessor = null;
  49.     private Player videotapePlayer = null;
  50.     private DataSink videotapeFileWriter;
  52.     public PlayPane() {
  53.         this.setLayout(new BorderLayout());
  54.         // 视图面板
  55.         viewBigPane = new JPanel() {
  56.             public void paintComponent(Graphics g) {
  57.                 super.paintComponent(g);
  58.                 if (!isViewBigPlaying) {
  59.                     g.drawImage(videoReqIcon.getImage(), 1, 1,
  60.                             videoReqIcon.getIconWidth(),
  61.                             videoReqIcon.getIconHeight(), null);
  63.                     g.drawRect(getSmallPlayRec().x – 1,
  64.                             getSmallPlayRec().y – 1,
  65.                             getSmallPlayRec().width + 1,
  66.                             getSmallPlayRec().height + 1);
  67.                 } else {
  69.                 }
  70.             }
  71.         };
  72.         viewBigPane.setBackground(Color.black);
  73.         this.add(viewBigPane, BorderLayout.CENTER);
  74.         viewBigPane.setLayout(null);
  75.         // ///////////////////////////////
  76.         viewSmallPane = new JPanel() {
  77.             public void paintComponent(Graphics g) {
  78.                 super.paintComponent(g);
  79.                 if (!isViewSmallPlaying) {
  80.                     g.drawImage(VideolocalIcon.getImage(), 0, 0, null);
  81.                 } else {
  83.                 }
  84.             }
  85.         };
  86.         viewSmallPane.setBounds(getSmallPlayRec());
  87.         viewBigPane.add(viewSmallPane);
  88.         viewSmallPane.setLayout(null);
  90.         // 控制面板组件
  91.         closeButton = new JButton(“挂断”);
  92.         controlPane = new JPanel();
  93.         controlPane.setLayout(new FlowLayout(FlowLayout.RIGHT, 0, 0));
  94.         controlPane.add(closeButton);
  95.         this.add(controlPane, BorderLayout.SOUTH);
  96.         closeButton.addActionListener(new ActionListener() {
  97.             public void actionPerformed(ActionEvent e) {
  98.                 if (localPlayer != null) {
  99.                     localPlayer.stop();
  100.                 }
  101.                 if (remotePlayer != null) {
  102.                     remotePlayer.stop();
  103.                 }
  104.                 if (videotapePlayer != null) {
  105.                     videotapePlayer.stop();
  106.                 }
  107.                 if (videotapeProcessor != null) {
  108.                     videotapeProcessor.stop();
  109.                 }
  110.                 if (videotapeFileWriter != null) {
  111.                     try {
  112.                         videotapeFileWriter.stop();
  113.                         videotapeFileWriter.close();
  114.                     } catch (IOException e1) {
  115.                     }
  116.                 }
  117.             }
  119.         });
  120.         // this.setMinimumSize(new Dimension(videoReqIcon.getIconWidth()+2,
  121.         // 241));
  122.         // this.setPreferredSize(new Dimension(videoReqIcon.getIconWidth()+2,
  123.         // 241));
  125.     }
  127.     public Dimension getMinimumSize() {
  128.         System.out
  129.                 .println(“controlPane.getHeight():” + controlPane.getHeight());
  130.         return new Dimension(videoReqIcon.getIconWidth() + 2,
  131.                 videoReqIcon.getIconHeight() + controlPane.getHeight());
  132.     }
  134.     public Dimension getPreferredSize() {
  135.         System.out
  136.                 .println(“controlPane.getHeight():” + controlPane.getHeight());
  137.         return new Dimension(videoReqIcon.getIconWidth() + 2,
  138.                 videoReqIcon.getIconHeight()
  139.                         + controlPane.getPreferredSize().height);
  140.     }
  142.     public void localPlay(DataSource dataSource) {
  143.         this.setLocalData(dataSource);
  144.         try {
  145.             localPlayer = javax.media.Manager.createPlayer(dataSource);
  147.             localPlayer.addControllerListener(new ControllerListener() {
  148.                 public void controllerUpdate(ControllerEvent e) {
  150.                     if (e instanceof javax.media.RealizeCompleteEvent) {
  151.                         Component comp = null;
  152.                         comp = localPlayer.getVisualComponent();
  153.                         if (comp != null) {
  154.                             // 将可视容器加到窗体上
  155.                             comp.setBounds(0, 0, VideolocalIcon.getIconWidth(),
  156.                                     VideolocalIcon.getIconHeight());
  157.                             viewSmallPane.add(comp);
  158.                         }
  159.                         viewBigPane.validate();
  160.                     }
  161.                 }
  162.             });
  163.             localPlayer.start();
  164.             localPlay = true;
  165.         } catch (NoPlayerException e1) {
  166.             e1.printStackTrace();
  167.         } catch (IOException e1) {
  168.             e1.printStackTrace();
  169.         }
  170.     }
  172.     private Rectangle getSmallPlayRec() {
  173.         int bigShowWidth = videoReqIcon.getIconWidth();
  174.         int bigShowHeight = videoReqIcon.getIconHeight();
  175.         int smallShowWidth = VideolocalIcon.getIconWidth();
  176.         int smallShowHeight = VideolocalIcon.getIconHeight();
  177.         return new Rectangle(bigShowWidth – smallShowWidth – 2, bigShowHeight
  178.                 – smallShowHeight – 2, smallShowWidth, smallShowHeight);
  179.     }
  181.     public void remotePlay(DataSource dataSource) {
  182.         this.setLocalData(dataSource);
  183.         remotePlay = true;
  184.         try {
  185.             remotePlayer = javax.media.Manager.createPlayer(dataSource);
  187.             remotePlayer.addControllerListener(new ControllerListener() {
  188.                 public void controllerUpdate(ControllerEvent e) {
  190.                     if (e instanceof javax.media.RealizeCompleteEvent) {
  191.                         Component comp;
  192.                         if ((comp = remotePlayer.getVisualComponent()) != null) {
  193.                             // 将可视容器加到窗体上
  194.                             comp.setBounds(1, 1, videoReqIcon.getIconWidth(),
  195.                                     videoReqIcon.getIconHeight());
  196.                             viewBigPane.add(comp);
  197.                         }
  198.                         viewBigPane.validate();
  199.                     }
  200.                 }
  201.             });
  202.             remotePlayer.start();
  203.             remotePlay = true;
  204.         } catch (NoPlayerException e1) {
  205.             e1.printStackTrace();
  206.         } catch (IOException e1) {
  207.             e1.printStackTrace();
  208.         }
  209.     }
  211.     public void closeViewUI() {
  212.         isShow = false;
  213.     }
  215.     public boolean isViewRunning() {
  216.         return isViewRun;
  217.     }
  219.     public boolean isShowing() {
  220.         return isShow;
  221.     }
  223.     public void localReady() {
  224.         localPlay = true;
  225.     }
  227.     public void remoteReady() {
  228.         remotePlay = true;
  229.     }
  231.     public boolean isRemotePlay() {
  232.         return remotePlay;
  233.     }
  235.     public void setRemotePlay(boolean remotePlay) {
  236.         this.remotePlay = remotePlay;
  237.     }
  239.     public DataSource getRemoteData() {
  240.         return remoteData;
  241.     }
  243.     public void setRemoteData(DataSource remoteData) {
  244.         this.remoteData = remoteData;
  245.     }
  247.     public boolean isLocalPlay() {
  248.         return localPlay;
  249.     }
  251.     public void setLocalPlay(boolean localPlay) {
  252.         this.localPlay = localPlay;
  253.     }
  255.     public DataSource getLocalData() {
  256.         return localData;
  257.     }
  259.     public void setLocalData(DataSource localData) {
  260.         this.localData = localData;
  261.     }
  263. }
package vidioPlay;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Component;
import java.awt.Dimension;
import java.awt.FlowLayout;
import java.awt.Graphics;
import java.awt.Rectangle;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.IOException;

import javax.media.ControllerEvent;
import javax.media.ControllerListener;
import javax.media.DataSink;
import javax.media.NoPlayerException;
import javax.media.Player;
import javax.media.Processor;
import javax.media.protocol.DataSource;
import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JPanel;

public class PlayPane extends JPanel {
	private ImageIcon videoReqIcon = new ImageIcon("videoReq.jpg");
	private ImageIcon VideolocalIcon = new ImageIcon("localVideo.jpg");
	private boolean isViewBigPlaying = false;
	private boolean isViewSmallPlaying = false;
	private JPanel viewBigPane;
	private JPanel viewSmallPane;
	private JPanel controlPane;

	private JButton closeButton;

	private boolean localPlay = false;
	private boolean remotePlay = false;

	private DataSource localData;
	private DataSource remoteData;

	private boolean isViewRun = true;
	private boolean isShow = true;
	//
	private Player localPlayer = null;
	private Player remotePlayer = null;
	//
	private Processor videotapeProcessor = null;
	private Player videotapePlayer = null;
	private DataSink videotapeFileWriter;

	public PlayPane() {
		this.setLayout(new BorderLayout());
		// 视图面板
		viewBigPane = new JPanel() {
			public void paintComponent(Graphics g) {
				super.paintComponent(g);
				if (!isViewBigPlaying) {
					g.drawImage(videoReqIcon.getImage(), 1, 1,
							videoReqIcon.getIconWidth(),
							videoReqIcon.getIconHeight(), null);

					g.drawRect(getSmallPlayRec().x - 1,
							getSmallPlayRec().y - 1,
							getSmallPlayRec().width + 1,
							getSmallPlayRec().height + 1);
				} else {

				}
			}
		};
		viewBigPane.setBackground(Color.black);
		this.add(viewBigPane, BorderLayout.CENTER);
		viewBigPane.setLayout(null);
		// ///////////////////////////////
		viewSmallPane = new JPanel() {
			public void paintComponent(Graphics g) {
				super.paintComponent(g);
				if (!isViewSmallPlaying) {
					g.drawImage(VideolocalIcon.getImage(), 0, 0, null);
				} else {

				}
			}
		};
		viewSmallPane.setBounds(getSmallPlayRec());
		viewBigPane.add(viewSmallPane);
		viewSmallPane.setLayout(null);

		// 控制面板组件
		closeButton = new JButton("挂断");
		controlPane = new JPanel();
		controlPane.setLayout(new FlowLayout(FlowLayout.RIGHT, 0, 0));
		controlPane.add(closeButton);
		this.add(controlPane, BorderLayout.SOUTH);
		closeButton.addActionListener(new ActionListener() {
			public void actionPerformed(ActionEvent e) {
				if (localPlayer != null) {
					localPlayer.stop();
				}
				if (remotePlayer != null) {
					remotePlayer.stop();
				}
				if (videotapePlayer != null) {
					videotapePlayer.stop();
				}
				if (videotapeProcessor != null) {
					videotapeProcessor.stop();
				}
				if (videotapeFileWriter != null) {
					try {
						videotapeFileWriter.stop();
						videotapeFileWriter.close();
					} catch (IOException e1) {
					}
				}
			}

		});
		// this.setMinimumSize(new Dimension(videoReqIcon.getIconWidth()+2,
		// 241));
		// this.setPreferredSize(new Dimension(videoReqIcon.getIconWidth()+2,
		// 241));

	}

	public Dimension getMinimumSize() {
		System.out
				.println("controlPane.getHeight():" + controlPane.getHeight());
		return new Dimension(videoReqIcon.getIconWidth() + 2,
				videoReqIcon.getIconHeight() + controlPane.getHeight());
	}

	public Dimension getPreferredSize() {
		System.out
				.println("controlPane.getHeight():" + controlPane.getHeight());
		return new Dimension(videoReqIcon.getIconWidth() + 2,
				videoReqIcon.getIconHeight()
						+ controlPane.getPreferredSize().height);
	}

	public void localPlay(DataSource dataSource) {
		this.setLocalData(dataSource);
		try {
			localPlayer = javax.media.Manager.createPlayer(dataSource);

			localPlayer.addControllerListener(new ControllerListener() {
				public void controllerUpdate(ControllerEvent e) {

					if (e instanceof javax.media.RealizeCompleteEvent) {
						Component comp = null;
						comp = localPlayer.getVisualComponent();
						if (comp != null) {
							// 将可视容器加到窗体上
							comp.setBounds(0, 0, VideolocalIcon.getIconWidth(),
									VideolocalIcon.getIconHeight());
							viewSmallPane.add(comp);
						}
						viewBigPane.validate();
					}
				}
			});
			localPlayer.start();
			localPlay = true;
		} catch (NoPlayerException e1) {
			e1.printStackTrace();
		} catch (IOException e1) {
			e1.printStackTrace();
		}
	}

	private Rectangle getSmallPlayRec() {
		int bigShowWidth = videoReqIcon.getIconWidth();
		int bigShowHeight = videoReqIcon.getIconHeight();
		int smallShowWidth = VideolocalIcon.getIconWidth();
		int smallShowHeight = VideolocalIcon.getIconHeight();
		return new Rectangle(bigShowWidth - smallShowWidth - 2, bigShowHeight
				- smallShowHeight - 2, smallShowWidth, smallShowHeight);
	}

	public void remotePlay(DataSource dataSource) {
		this.setLocalData(dataSource);
		remotePlay = true;
		try {
			remotePlayer = javax.media.Manager.createPlayer(dataSource);

			remotePlayer.addControllerListener(new ControllerListener() {
				public void controllerUpdate(ControllerEvent e) {

					if (e instanceof javax.media.RealizeCompleteEvent) {
						Component comp;
						if ((comp = remotePlayer.getVisualComponent()) != null) {
							// 将可视容器加到窗体上
							comp.setBounds(1, 1, videoReqIcon.getIconWidth(),
									videoReqIcon.getIconHeight());
							viewBigPane.add(comp);
						}
						viewBigPane.validate();
					}
				}
			});
			remotePlayer.start();
			remotePlay = true;
		} catch (NoPlayerException e1) {
			e1.printStackTrace();
		} catch (IOException e1) {
			e1.printStackTrace();
		}
	}

	public void closeViewUI() {
		isShow = false;
	}

	public boolean isViewRunning() {
		return isViewRun;
	}

	public boolean isShowing() {
		return isShow;
	}

	public void localReady() {
		localPlay = true;
	}

	public void remoteReady() {
		remotePlay = true;
	}

	public boolean isRemotePlay() {
		return remotePlay;
	}

	public void setRemotePlay(boolean remotePlay) {
		this.remotePlay = remotePlay;
	}

	public DataSource getRemoteData() {
		return remoteData;
	}

	public void setRemoteData(DataSource remoteData) {
		this.remoteData = remoteData;
	}

	public boolean isLocalPlay() {
		return localPlay;
	}

	public void setLocalPlay(boolean localPlay) {
		this.localPlay = localPlay;
	}

	public DataSource getLocalData() {
		return localData;
	}

	public void setLocalData(DataSource localData) {
		this.localData = localData;
	}

}





之后操作如下：

1、安装JMF软件（如果不想安装，就请阅读我转载一篇文章）：

2、新建工程将源代码加入工程src下

3、导入第三方包jmf.jar,和fmj.jar（如果网上找不到,请加入该群83945749）

4、运行的时候先运行MediaTransmit类，后运行MediaReceive类

http://www.iteye.com/topic/1098698
