Linux下使用Cacti监控流量状况.Cacti 在英文中的意思是仙人掌的意思，Cacti是一套基于PHP,MySQL,SNMP及RRDTool开发的网络流量监测图形分析工具，使用PHP开发，它是由一些PHP页面组成软件，主要针对企业的大量网络设备、服务器主机***能监测服务，可提供对CPU负载、内存占用、运行进程数、磁盘空间、网卡流量等各种数据信息的监测，cacti注重的是状态监控，报警和服务恢复功能比较差。
官方站点：

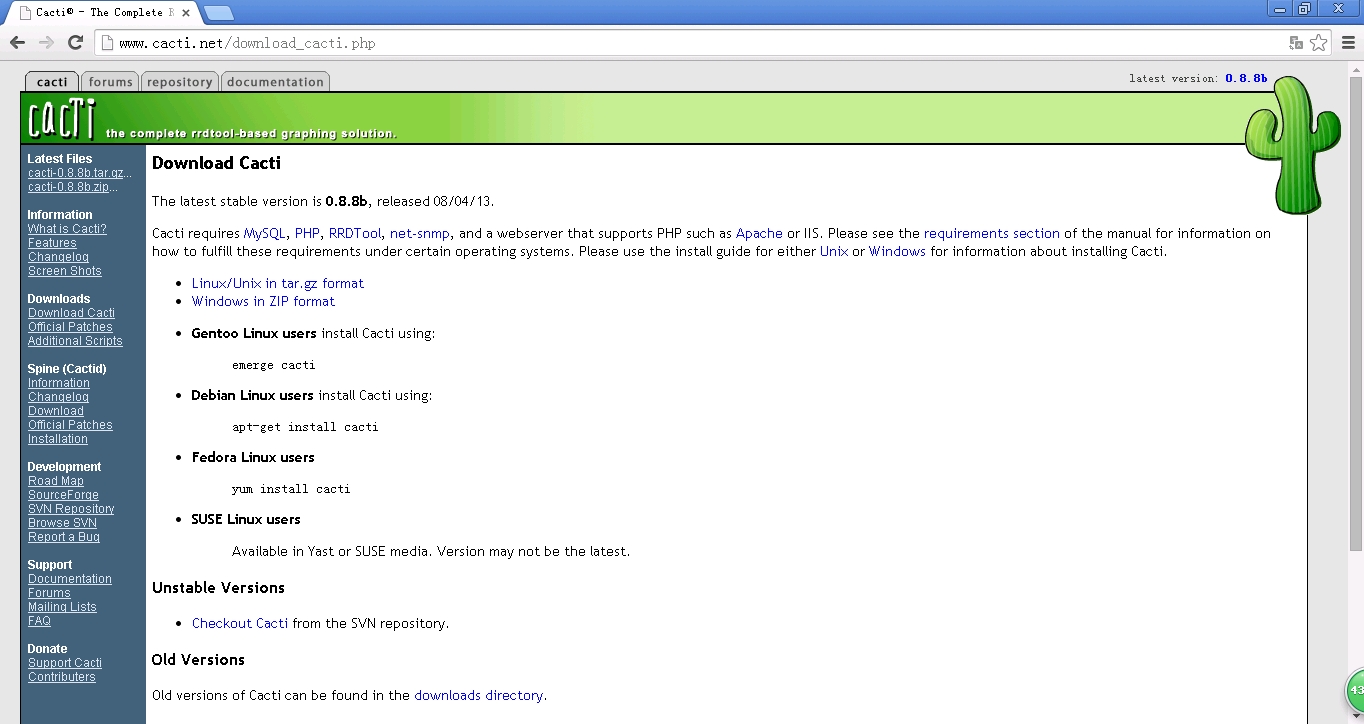

下载页面：
http://www.cacti.net/downloads/cacti-0.8.8b.tar.gz
开始Cacti安装部署
机器IP地址：192.168.1219.129
软件下载：
[root@rhel64 ~]# wget http://www.cacti.net/downloads/cacti-0.8.8a.tar.gz
[root@rhel64 ~]# wget http://oss.oetiker.ch/rrdtool/pub/rrdtool-1.4.5.tar.gz
[root@rhel64 ~]# wget http://www.cacti.net/downloads/spine/cacti-spine-0.8.8a.tar.gz
安装lamp环境：
[root@rhel64 ~]# yum install -y httpd mysql mysql-server php php-mysql php-json php-pdo
安装相关的lib库：
[root@rhel64 ~]# yum install -y cairo-devel libxml2-devel pango pango-devel
安装编译器：
[root@rhel64 ~]# yum -y install gcc make gcc-c++
解压编译软件：
[root@rhel64 ~]# tar -xzf rrdtool-1.4.5.tar.gz
[root@rhel64 ~]# cd rrdtool-1.4.5
[root@rhel64 rrdtool-1.4.5]# ./configure –prefix=/usr/local/rrdtool/
[root@rhel64 rrdtool-1.4.5]# make && make install
[root@rhel64 rrdtool-1.4.5]# ln -s /usr/local/rrdtool/bin/* /usr/local/bin/
安装snmp服务：
[root@rhel64 rrdtool-1.4.5]# yum -y install net-snmp net-snmp-utils
安装Cacti主程序：
[root@rhel64 ~]# tar xzf cacti-0.8.8a.tar.gz && mv cacti-0.8.8a /var/www/html/cacti
创建Cacti数据库：
[root@rhel64 ~]# service mysqld start
[root@rhel64 ~]# /usr/bin/mysqladmin -u root -h rhel64 password ’123456′
[root@rhel64 ~]# /usr/bin/mysqladmin -u root password ’123456′
[root@rhel64 ~]# mysql -uroot -p
mysql> create database cacti;
Query OK, 1 row affected (0.00 sec)
mysql> grant all on cacti.* to cacti@’localhost’ identified by “123456″;
Query OK, 0 rows affected (0.00 sec)
mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)
mysql>
把Cacti数据导入Cacti数据库：
[root@rhel64 ~]# mysql -ucacti -p123456 cacti</var/www/html/cacti/cacti.sql
[root@rhel64 ~]# chmod -R 777 /var/www/html/cacti/rra
[root@rhel64 ~]# chmod -R 777 /var/www/html/cacti/log
[root@rhel64 ~]# vi /var/www/html/cacti/include/config.php
< ?php
/*
+————————————————————————-+
| Copyright (C) 2004-2012 The Cacti Group |
| |
| This program is free software; you can redistribute it and/or |
| modify it under the terms of the GNU General Public License |
| as published by the Free Software Foundation; either version 2 |
| of the License, or (at your option) any later version. |
| |
| This program is distributed in the hope that it will be useful, |
| but WITHOUT ANY WARRANTY; without even the implied warranty of |
| MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the |
| GNU General Public License for more details. |
+————————————————————————-+
| Cacti: The Complete RRDTool-based Graphing Solution |
+————————————————————————-+
| This code is designed, written, and maintained by the Cacti Group. See |
| about.php and/or the AUTHORS file for specific developer information. |
+————————————————————————-+
| http://www.cacti.net/ |
+————————————————————————-+
*/
/* make sure these values refect your actual database/host/user/password */
$database_type = “mysql”;
$database_default = “cacti”;
$database_hostname = “localhost”;
$database_username = “cacti”;
$database_password = “123456″;
$database_port = “3306″;
$database_ssl = false;
/*
Edit this to point to the default URL of your Cacti install
ex: if your cacti install as at http://serverip/cacti/ this
would be set to /cacti/
*/
//$url_path = “/cacti/”;
/* Default session name – Session name must contain alpha characters */
//$cacti_session_name = “Cacti”;
?>
[root@rhel64 ~]# setenforce 0
[root@rhel64 ~]# crontab -e
*/5 * * * * /usr/bin/php /var/www/html/cacti/poller.php >>/tmp/cacti_rrdtool.log 2>&1
http://192.168.1219.129/cacti/

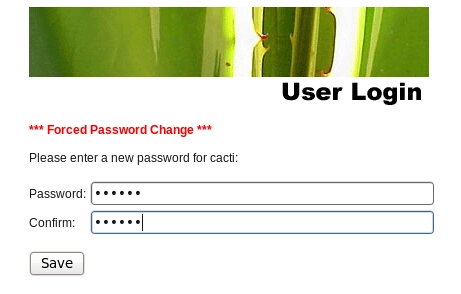

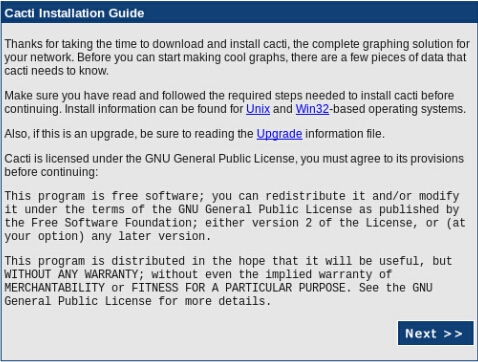

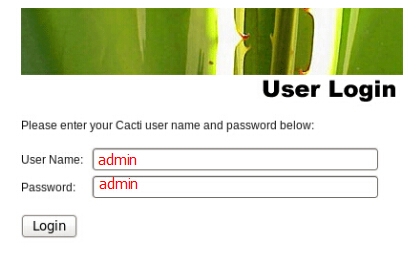

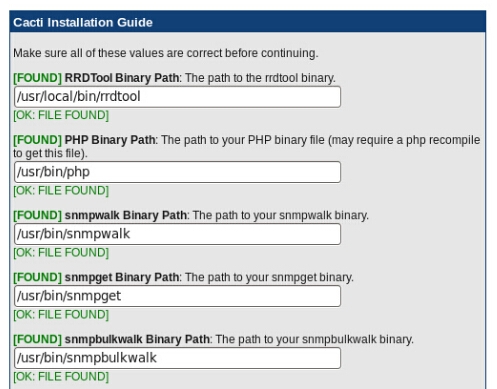

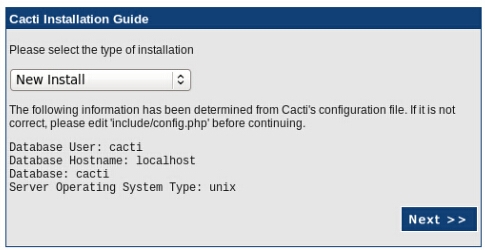

一直点击next下去即可，用户名和密码默认是admin.admin，第一次登陆需要修改密码。
定义监控哪些设备：

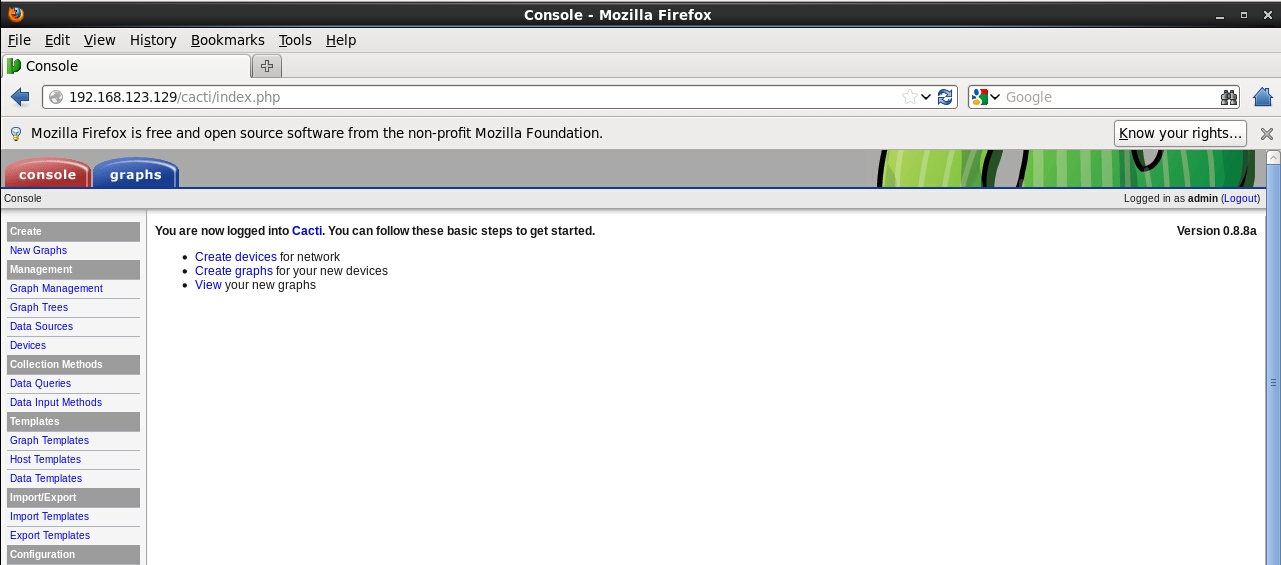

控制面版–>建立设备–>定义设备–>为设备生成图像–>在图像树中添加新设备
console–>Devices–>add(左上角)–>define devices–>Create Graphs for this Host–>create
在被监控客户机上要安装net-snmp,41行那里要填写监控端的IP地址。
[root@rhel64 ~]# yum -y install net-snmp
[root@rhel64 ~]# vim /etc/snmp/snmpd.conf
62 access notConfigGroup “” any noauth exact all none none
41 com2sec notConfigUser 192.168.1219.129 public
85 view all included .1 80
[root@rhel64 ~]# service snmpd start
待续…
